Carpentry PVC

TECHNICAL INFORMATION

Want to do a lot for the environment, yet save costs without sacrificing convenience and design? The passive house makes it possible: with KÖMMERLING 76. When fitted with the upgrade technology proEnergyTec, the modern window system exhibits a thermal insulation value U_f of 0.17 BTU/(hr ⁰F ft²) or 0.95 W/(m²K), fulfilling the high energy saving requirements for passive houses. With 44 mm thermal insulation glazing and TGI spacer – Ug = 0.11 BTU/(hr ⁰F ft²) or 0.6 W/(m²K) – the U_w value is 0.14 BTU/(hr ⁰F ft² or0.80 W/(m²K).

The reinforcing chamber in the frame is foam-filled with proEnergyTec. Loads from heavy glazing weights are transferred reliably to the central steel reinforcement.  This technology achieves the highest thermal insulation values and can be recycled easily at a later date.

The values are so good that KÖMMERLING 76 with proEnergyTec is passive house compatible as defined under the ift guideline WA 15/2.

HIGHLIGHTS

• Outstanding thermal insulation value U_f of 0.17 BTU/(hr ⁰F ft²) or 0.95 W/(m²K)
• Passive house suitability as defined under the ift guideline WA-15/2 – U_w value is 0.14 BTU/(hr ⁰F ft²or0.80 W/(m²K).
• Highest thermal insulation values thanks to proEnergyTec technology.
• Reliable load transfer from heavy glazing weights to the central steel reinforcement.
• Classic white, laminated in woodgrain or plain colours, and in the innovative surface technology proCoverTec.
• Fully recyclable.

All PVC-U profiles are produced with lead-free stabilisers based on calcium and zinc

combination

Combine form and colour just as you wish. An extensive profile range and various surface finishes offer a great many possibilities. The system is available in white, woodgrain laminates, or plain or metallic colours – laminated on the outside and white on the inside, or laminated on both sides. Moreover, KÖMMERLING 76 is available with the new innovative surface technology proCoverTec in a further 22 colours.

This system also sets an example from the ecological viewpoint – The KÖMMERLING brand was the first key producer in the world to manufacture profiles not only with regrinds in virgin window PVC-U, but also exclusively with lead-free PVC with “green” stabilisers based on calcium and zinc.

Foaming makes exclusive use of eco-friendly agents, and the foam and PVC-U can be separated cleanly from each other for recycling purposes. This guarantees that those who use KÖMMERLING products are also working to protect the environment.

TECHNICAL INFORMATION KÖMMERLING 76

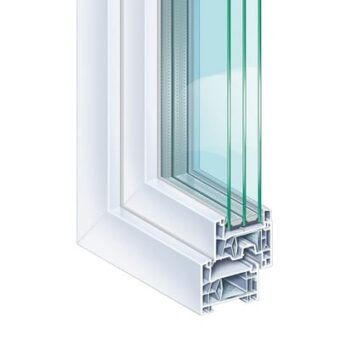

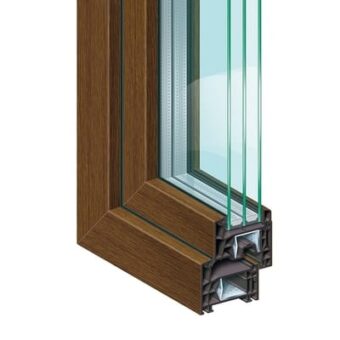

The KÖMMERLING 76 (3 inch) double seal system offers all the benefits modern windows can give you. This double seal system with five chambers and 76 mm construction depth offers a fascinating combination of modern design and perfect profile proportions. Whether function, structural properties, insulation values, environmental protection, or preservation of value, it fulfills the requirements of both today, and above all tomorrow. The KÖMMERLING 76 double seal system is such an innovative design that it can take modern triple glazing or special functional glazing with panes up to 48 mm thick. Thanks to intelligent fastening technology, the professional installation is fast, clean, and effortless, thanks also to a dedicated nail fin option. So replacing old windows with new modern KÖMMERLING 76 double seal systems could not be easier.

Even the standard system version fulfills the low energy house requirements – U_f value = 0.19 BTU/(hr ⁰F ft²) or 1.1 W(m²K). The intelligent overall design boosts thermal and sound insulation, and you profit from greater living quality, cost effectiveness, and security.

Combine form and colour just as you wish. An extensive profile range – with offset, semi offset, and design sash – and various surface finishes offer a great many possibilities. The system is available in white, woodgrain laminates, or plain or metallic colours – laminated on the outside and white on the inside, or laminated on both sides. Moreover, KÖMMERLING 76 is available with the new innovative surface technology proCoverTec in a further 22 colours.

This system also sets an example from the ecological viewpoint – The KÖMMERLING brand was the first key producer in the world to manufacture profiles not only with regrinds in virgin window PVC-U, but also exclusively with lead-free PVC with “green” stabilisers based on calcium and zinc. This guarantees that those who use KÖMMERLING products are also working to protect the environment.

HIGHLIGHTS

• A new high-insulation 76 mm system for high cost and energy savings –
  U_f value =  0.19 BTU/(hr ⁰F ft²) or 1.1 W/(m²K) alone for the standard version.
• Perfected noise protection for enhanced quality of living.
• Optional integrated burglary protection for greater security.
• Easy care thanks to robust and weather resistant surfaces.
• Lasting value thanks to durable quality on the highest level.
• Ultra-modern technology for great handling ease and reliable functionality.
• All PVC-U profiles are produced with lead-free stabilisers based on calcium and zinc.

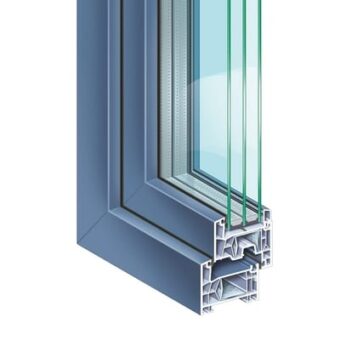

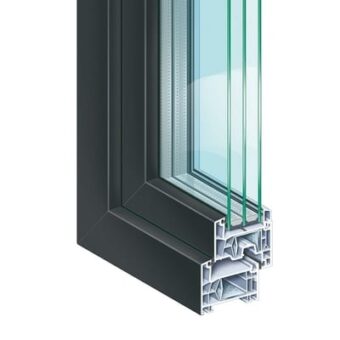

residentials door

Residential doors with aluminium cladding combine the benefits of both materials in the one structural element. On the outside, the aluminium cladding offers almost limitless possibilities in colour design, whilst on the inside PVC-U profiles ensure low maintenance, high dimensional stability, and reliable functionality.

The residential door system KÖMMERLING 76 embodies all the requirements needed for high quality, inward opening residential door systems. The high-insulation five-chamber system provides the optimal protection against heat and cold. KÖMMERLING 76 residential doors also exhibit a high base stability. The large steel reinforcements form a solid, closed frame.

The sash corners are reinforced with welded corner connectors forming a nonpositive connection with the steel reinforcement. These absorb bending and torsional forces, e.g. from jemmying attempts, and deflect them through the entire surrounding steel frame. Special hardware enhances security to an even higher level.

The special clip-on technology ensures a stress-free connection between the PVC-U and aluminium materials. Possible are single- and multi-sash inward opening residential doors with top light or side frames. Residential doors can be fitted just as you wish with Georgian bars, conventional functional or ornamental glazing, or prefabricated panels.

This system also sets an example from the ecological viewpoint – The KÖMMERLING brand was the first key producer in the world to manufacture profiles not only with regrinds in virgin window PVC-U, but also exclusively with lead-free PVC with “green” stabilisers based on calcium and zinc. This guarantees that those who use KÖMMERLING products are also working to protect the environment.

HIGHLIGHTS

• High-insulation residential door system with 76 mm construction depth, average U_f value = 0.21 BTU/(hr ⁰F ft²) or 1.2 W(m²K).
• 5-chamber design with maximal sized steel reinforcement and welded corner connector for greater static properties.
• High tightness with double seal to barrier free threshold with thermal break.
• Threshold connector for precision fitting and sealing between frame and threshold.
• For special functional glazing or residential door panelling up to 48 mm.
• High level of protection against forced entry – up to resistance class RC 2 (European standard).
• Max sash sizes Residential door, single-sash 1200 x 2400 mm, residential door, floating mullion sash 1000 x 2400 mm.
• All PVC-U profiles are produced with lead-free stabilisers based on calcium and zinc.

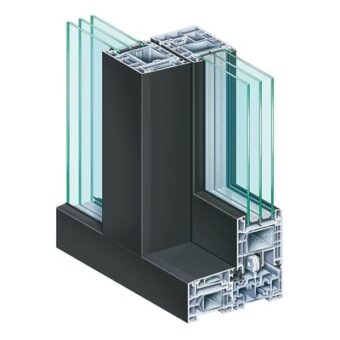

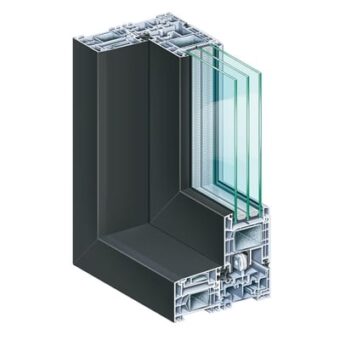

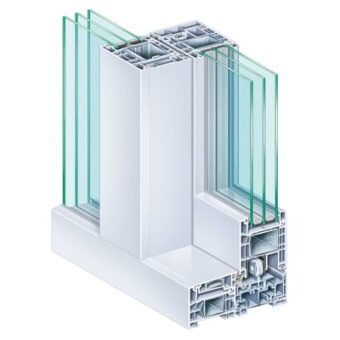

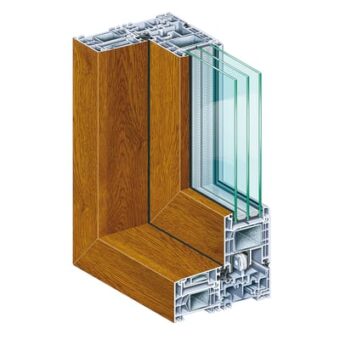

premidoor 76

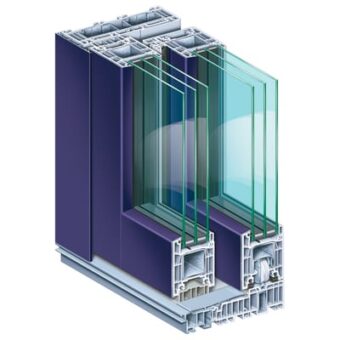

The lift/sliding door system with clip-on aluminium cover combines the advantages of both materials in the one structural element. On the outside, the aluminium cladding offers almost limitless possibilities in colour design, whilst on the inside, PVC-U profiles ensure low maintenance, high dimensional stability, and reliable functionality.

Fulfil your dream of bright living spaces flooded with light: With the innovative lift/sliding door system PremiDoor 76 AluClip. The lift/sliding doors with a width of up to 19.7 feet (6.00 metres) and a height of up to 7.9 feet (2.40 metres) can be manufactured. Be it green garden or urban skyline – with PremiDoor 76 AluClip you can bring the outside world into your living environment thanks to the extensive glazed areas. This modern, barrier-free system is further enhanced by its excellent handling ease and thermal insulation. Whether new building or renovation: The PremiDoor 76 AluClip lift/sliding door system offers you the perfect solution. Get the new freedom for your home.

Thanks to its consistent five chamber design and small construction depth of 7.5 inches (189.5 mm), PremiDoor 76 AluClip is ideal for renovations. Glazing is possible up to a thickness of 50 mm. A high passage of light is ensured by the slender sight lines at the casement, sash, and centre fastener. Even the standard version of this new development exhibits an average U_f value = 0.25 BTU/(hr ⁰F ft²) or 1.4 W/(m²K), among the best of its kind for lift/sliding doors. The standard range also includes a fully accessible threshold system. The system has been designed as a simple, cost effective solution for your own security needs – with a resistance class up to RC2 (European standard).

This system also sets an example from the ecological viewpoint – The KÖMMERLING brand is the first key producer in the world to manufacture profiles not only with regrinds in virgin window PVC-U, but also exclusively with lead-free PVC with “green” stabilisers based on calcium and zinc. This guarantees that those who use KÖMMERLING products are also working to protect the environment.

HIGHLIGHTS PREMIDOOR 76

• PremiDoor 76 AluClip – Innovative lift/sliding door system with 76 mm construction depth and attached aluminium cover in virtually any colour scheme.
• Fully accessible thresholds realised in conformance with standards.
• Maximum element size of 19.7 feet (6.00 m) width × 7.9 feet (2.40 m) height.
• Ease of handling when opening and closing.
• Extraordinary thermal insulation compared with aluminium lift/sliding doors – average U_f value = 0.25 BTU/(hr ⁰F ft²) or 1.4 W/(m²K)
• Outside aluminium look, inside neutral white.
• Almost unlimited choice of colour of the aluminium cladding due to finishing techniques such as anodising and powder coating.
• Conservation of resources by using only a minimum quantity of aluminium.
• Easy to clean, durable and robust.
• All PVC-U profiles are produced with lead free stabilisers based on calcium and zinc.

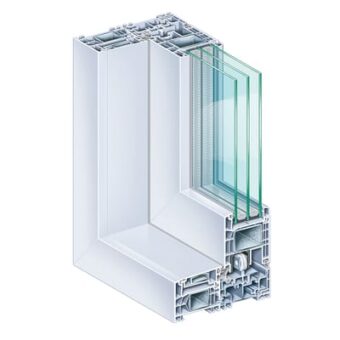

premidoor 88 Lux ALuclip

This PVC-U lift/sliding door with clip-on aluminium cladding combines the benefits of both materials in the one structural element. On the outside, the aluminium cladding offers almost limitless possibilities in colour design whilst on the inside PVC-U profiles ensure low maintenance, high dimensional stability, and reliable functionality.

With its PremiDoor 88 Lux AluClip, KÖMMERLING can now meet one of the key demands in architecture: an even larger glazed area. Fixed glazing now no longer needs the sash profile. External glazing can be fitted in filigree aluminium beads. The result cannot fail to convince, in terms of both energy savings and aesthetics. The larger glazed area achieves higher solar energy gains. More light, more heat, more design – and consequently a greater feel good factor and more naturalness in your living environment.

PremiDoor 88 Lux AluClip is an all new design of lift/sliding door. With the maximum opening and closing convenience, excellent insulating values, and aesthetic architectural elegance. Impervious to driving rain, wind, and outside noise – here too, PremiDoor 88 Lux AluClip presents a convincing range of outstanding performance properties.

There is one sustained trend in architecture: the desire for ever larger, continuous glazed areas and more openness. At the same time, these areas must fulfill the ever more stringent energy saving requirements. In order to fulfill both these demands, PremiDoor 88 Lux AluClip consists of an innovative 88 mm profile. This profile system is characterised by its large construction depth promoting a high stability, excellent insulating values, and a wide glazing range up to 54 mm for special functional glazing.

This system also sets an example from the ecological viewpoint – The KÖMMERLING brand was the first key producer in the world to manufacture profiles not only with regrinds in virgin window PVC-U, but also exclusively with lead-free PVC with “green” stabilisers based on calcium and zinc. This guarantees that those who use KÖMMERLING products are also working to protect the environment.

HIGHLIGHTS PREMIDOOR 88

• High profile stability for floor to ceiling elements up to 2.90 m.
• Outstanding heat transfer coefficient of average U_f value = 1.4 W/(m²K).
• Large area, sashless fixed glazing with panes up to 54 mm thick.
• Barrier free transition from inside to outside – high insulation WPC threshold.
• Reliable functionality, great handling ease, easy to open and close as if sliding on air.
• Three sealing levels ensure the optimal protection against wind, rain, and outside noise.
• Outside aluminium look, inside neutral white.
• Almost unlimited choice of colour of the aluminium cladding due to finishing techniques such as anodising and powder coating.
• Conservation of resources by using only a minimum quantity of aluminium.
• Easy to clean, durable and robust.
• Deep installation channels conceal element fasteners.
• All PVC-U profiles are produced with lead-free stabilisers based on calcium and zinc.

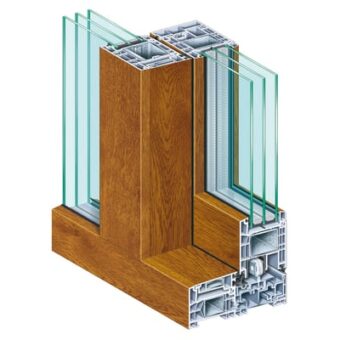

PREMISLIDE 76

KÖMMERLING PremiSlide 76 offers greater design diversity – especially as a window system whose sliding function presents an interesting alternative to the tilt/turn variants. When running in its track, instead of swerving to the inside, the sash remains tight and safe, yet still offers a lot of space for modern design concepts and individual indoor comfort. This sliding system is ideal for sliding windows, sliding doors, and side entrance doors, opening up a whole new world of possibilities.

PremiSlide 76 exhibits excellent engineering properties, e.g. 158 mm entire installation depth, 76 mm installation depth of the sliding sash, five chamber structure of its PVC-U profiles, a peripheral sealing system, and a facility for triple glazing or ultra modern functional glazing up to 50 mm thick. With respect to thermal insulation, PremiSlide 76 makes a lasting impression. With a maximum U_f value of 1.4 W/(m²K) as standard and a maximum U_w value of 0.70 W/(m²K), this sliding system achieves the best energy saving value in its product class. The slender profile sight lines provide the optimal space for the greatest possible passage of light and hence greater solar energy gains. The result is additional reductions to heating costs.

The carriages move gently sideways, taking up the sliding sashes’ movements for the optimal motion. Moreover, KÖMMERLING PremiSlide 76 promotes effective gap ventilation, but without compromise to the sliding sashes’ reliability.

In addition to classical white, the system comes with colour laminates – offering woodgrain, plain, and metallic colours – that are applied to the outside (white inside) or both sides.

Our greenline principle: that extra sustainability in the form of energy efficient window systems, lead free stabilisers in virgin material, and intelligent regrind concepts.

HIGHLIGHTS PREMIslide 76

• PremiSlide is a new kind of innovative sliding system with 158 mm installation depth.
• Based on the KÖMMERLING 76 double seal system.
• Ideal as a sliding window, sliding door, or side entrance door.
• Maximum heat transfer coefficient U_f 1.4 W(m²K) as standard.
• Triple glazing with a maximum pane thickness of 50 mm.
• Reliable ECO SLIDE hardware system by Siegenia.
• Intuitive, auto responsive operation with gap ventilation function.
• Easy, convenient handling.
• Colour design options in classical PVC white and laminated in wood grain, plain, and metallic colours.
• All PVC-U profiles are produced with lead free stabilisers based on calcium and zinc.
